Phụ tùng bơm màng Sandpiper S05 Non-Metallic
| Phụ Tùng Bơm màng hoạt động bằng khí nén |
| Hiệu : Sandpiper – USA |

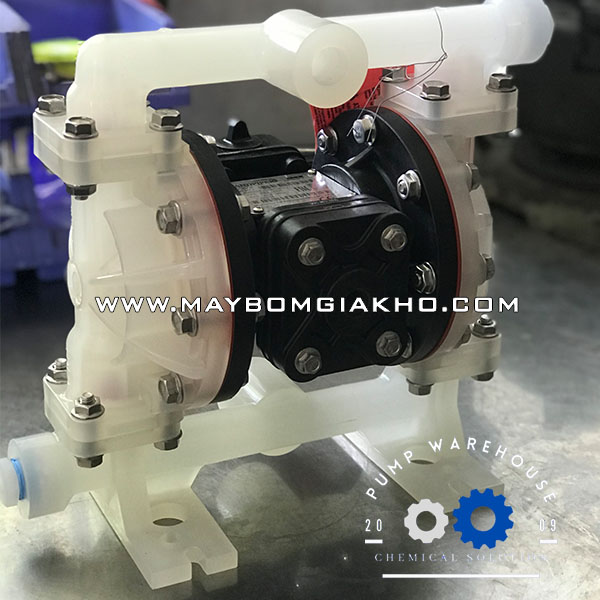

| Phụ tùng thay thế cho bơm Model S05 Nhựa |
| Thân bơm : nhựa polypropylene |
| Màng bơm, bi ,đế bi : Nhựa Santo,Teflon, Kayna (PVDF) |
| Xuất xứ : USA do hãng Warren Rupp Sản Xuất |
Liên hệ tư vấn: 0 VND

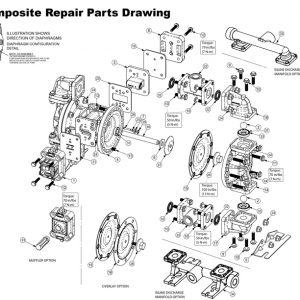

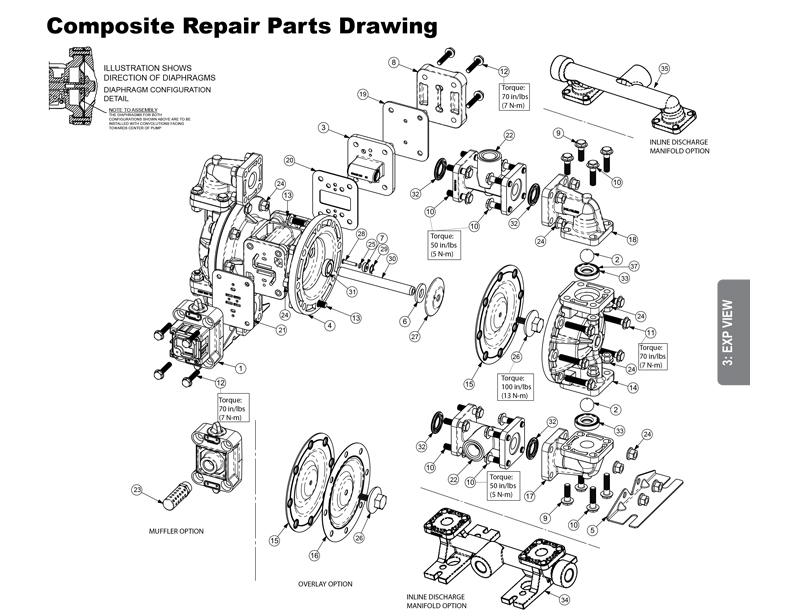

| ITEM | PART NUMBER | DESCRIPTION |

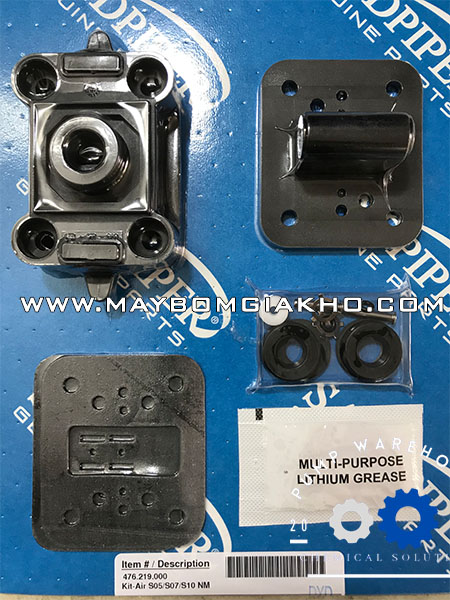

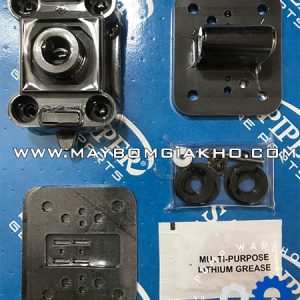

| 1 | 031.166.000 | Air Valve Assembly |
| 2 | 050.027.354 | Ball, Check, Santoprene |
| 050.027.357 | Ball, Check, Polyurethane | |
| 050.027.360 | Ball, Check, Nitrile | |
| 050.022.600 | Ball, Check, PTFE | |
| 3 | 095.091.000 | Pilot Valve Assembly |
| 4 | 114.023.551 | Bracket, Intermediate |
| 5 | 115.140.115 | Bracket, Mounting |
| 6 | 132.034.360 | Bumper, Diaphragm |
| 7 | 135.036.506 | Bushing, Plunger |
| 8 | 165.110.551 | Cap, Air Inlet |
| 9 | 171.062.115 | Capscrew, Flanged 5/16-18 X 1.00 |
| 10 | 171.063.115 | Capscrew, Flanged 5/16-18 X 1.25 |
| 11 | 171.064.115 | Capscrew, Flanged 5/16-18 X 1.50 |
| 171.064.308 | Capscrew, Flanged 5/16-18 X 1.50 | |
| 12 | 171.066.115 | Capscrew, Flanged 1/4-20 X 1.25 |
| 171.066.308 | Capscrew, Flanged 1/4-20 X 1.25 | |
| 13 | 171.075.115 | Capscrew, Flanged 5/16-18 X .88 |
| 14 | 196.178.520 | Chamber, Outer, PVDF |
| 196.178.521 | Chamber, Outer, Conductive PVDF | |

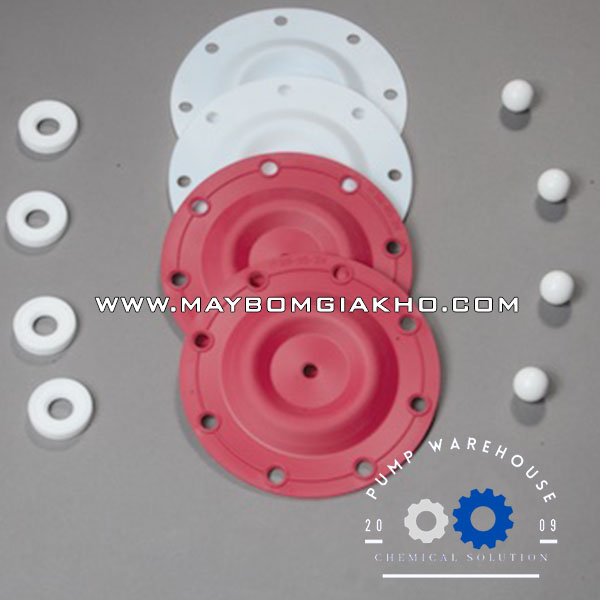

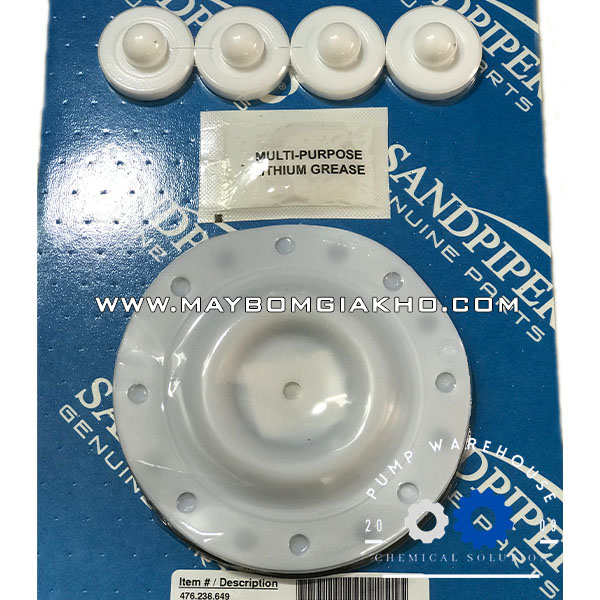

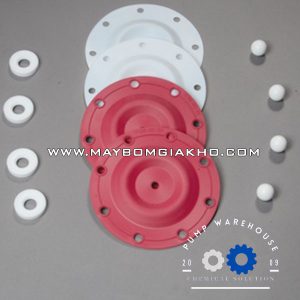

| 15 | 286.095.354 | Diaphragm, Santoprene |
| 286.095.357 | Diaphragm, Polyurethane | |
| 286.095.360 | Diaphragm, Buna | |

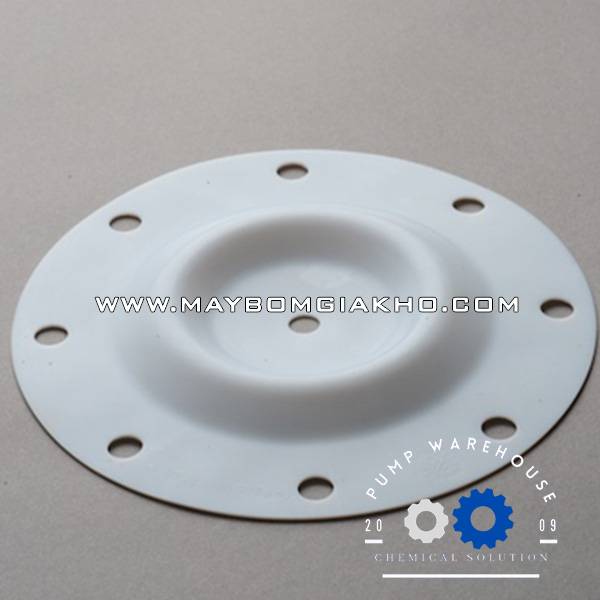

| 16 | 286.096.600 | Diaphragm, Overlay, PTFE |
| 17 | 312.106.520 | Elbow, Suction, PVDF |
| 312.106.552 | Elbow, Suction (not used with Inline option), Poly | |
| 18 | 312.112.520 | Elbow, Discharge, PVDF |
| 312.112.552 | Elbow, Discharge (not used with Inline option), Poly | |
| 19 | 360.100.360 | Gasket, Air Inlet. |
| 360.100.379 | Gasket, Air Inlet (Conductive Polypropylene or PVDF, or .. Solenoid Option) | |
| 20 | 360.101.360 | Gasket, Pilot Valve |
| 21 | 360.102.360 | Gasket, Air Valve |
| 22 | 518.138.520 | Manifold, NPT, PVDF |
| 518.138.521 | Manifold, NPT, Conductive PVDF | |
| 518.138.552 | Manifold, NPT (not used with Inline option), Poly | |
| 23 | 530.035.000 | Muffler |
| 24 | 544.005.115 | Nut, Flanged 5/16-18 |
| 25 | 560.001.360 | O-Ring |
| 26 | 612.091.520 | Plate, Outer Diaphragm,PVDF |
| 612.091.552 | Plate, Outer Diaphragm, Poly | |
| 27 | 612.177.330 | Plate, Inner Diaphragm |
| 28 | 620.019.115 | Plunger, Actuator |
| 29 | 675.042.115 | Ring, Retaining |
| 30 | 685.056.120 | Rod, Diaphragm |
| 31 | 720.012.360 | Seal, Diaphragm Rod |
| 32 | 720.045.600 | Seal, Manifold (not used with Inline option) |
| 33 | 722.099.600 | Seat, Check Valve, PTFE |
| 34 | 518.201.552 | Inline Suction Manifold (Polypropylene ONLY) |
| 35 | 518.202.552 | Inline Discharge Manifold (Polypropylene ONLY) |
| 36 | 618.058.552 | Plug, 1/2″ Pipe (Inline Option Polypropylene ONLY) |
| 37 | 720.065.600 | Seal, Check Valve Seat (steel seats only) |
