755-052-000

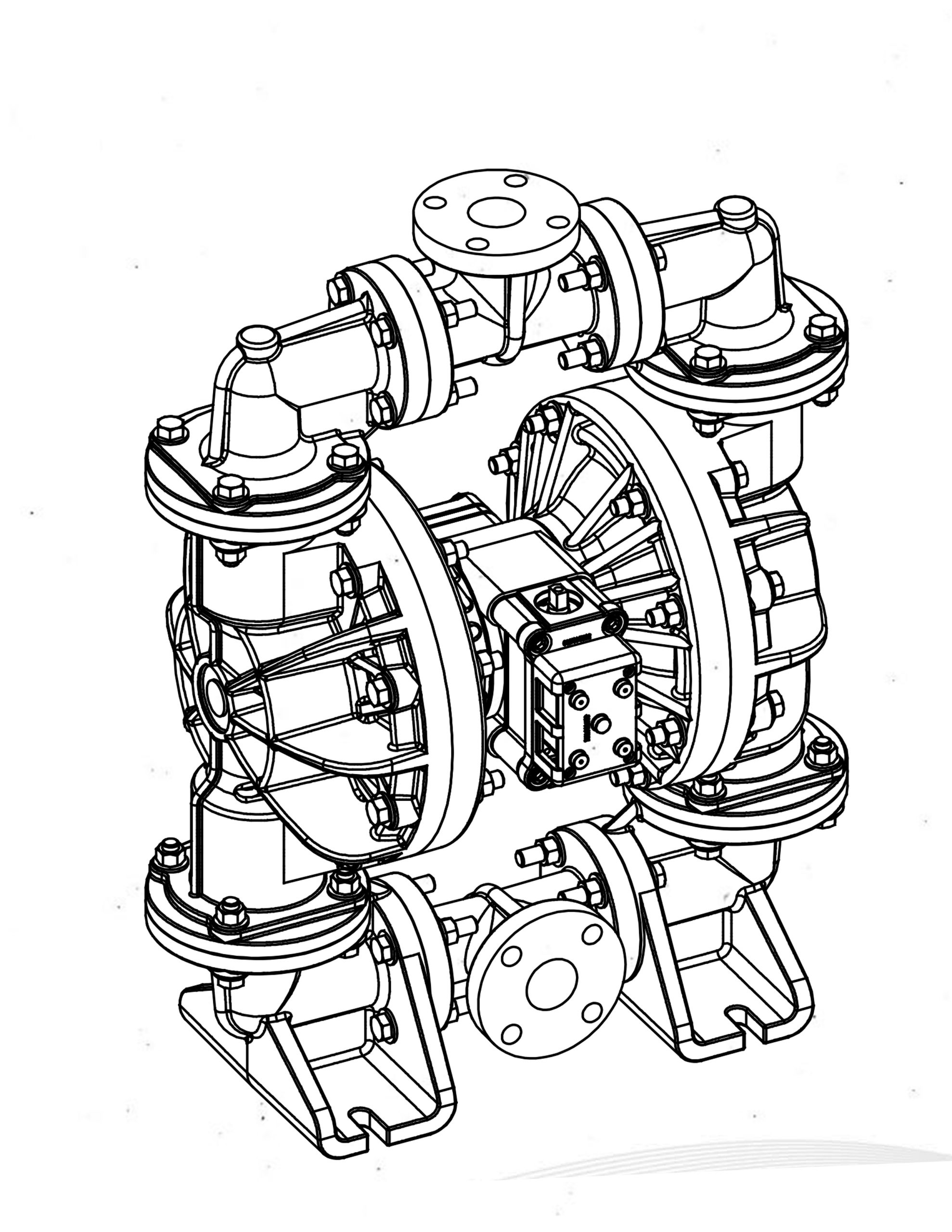

Phụ tùng bơm màng Sandpiper S15 Non-Metallic

Air Valve Assembly Parts List
Item	Part Number	Description	Qty

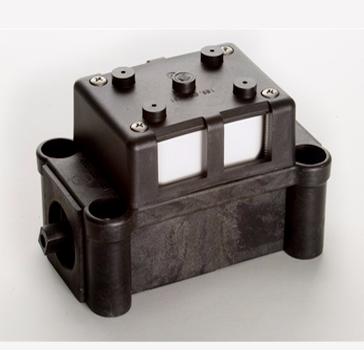

1	031.140.000*	Air Valve Assembly	1

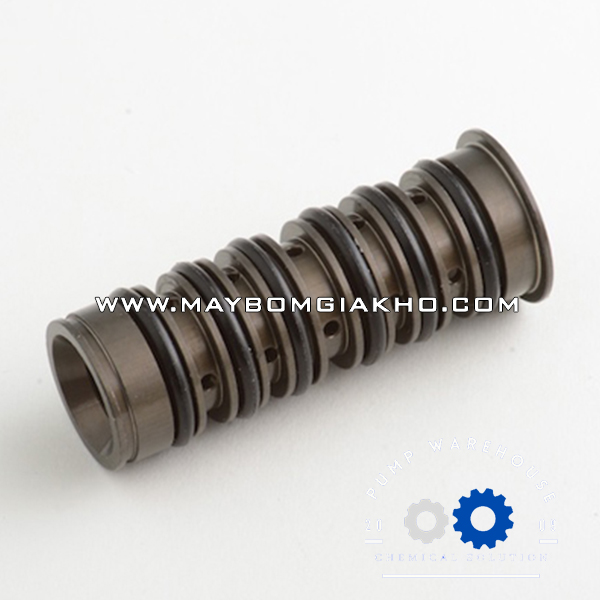

1-A	031.139.000	Sleeve and Spool Set	1
1-B	095.119.551	Body, Air Valve	1
1-D	165.096.551	Cap, Muffler	1
1-E	165.140.551	Cap, End	2
1-F	530.028.550	Muffler	1
1-G	560.020.360	O-Ring	10
1-H	675.068.115	Staple	2
1-J	710.015.115	Screw, Self-tapping	4

Liên hệ tư vấn: 0 VND

Danh mục: Bơm Màng Sandpiper, Phụ Tùng Bơm Màng Khí Nén Từ khóa: phụ tùng bơm màng Sandpiper

Mô tả
Đánh giá (0)

ITEM	PART NUMBER	DESCRIPTION	QTY
1	031.140.000	Air Valve Assembly	1
	031.140.001	Air Valve Assembly	1
	031.140.002	Air Valve Assembly w/PTFE Coated Hardware	1
	031.140.162	Air Valve Assembly (Brass Spool – Stainless Sleeve)	1
	031.141.000	Air Valve Assembly (No Muffler)	1
	031.141.001	Air Valve Assembly (No Muffler)	1
	031.141.162	Air Valve Assembly (No Muffler Brass Spool – Stainless Sleeve)
	031.146.000	Air Valve Assembly (With Stroke Indicator Option)	1
	031.147.000	Air Valve Assembly (With Stroke Indicator Option) (No Muffler)	1

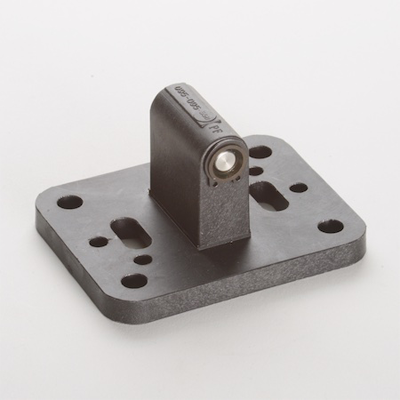

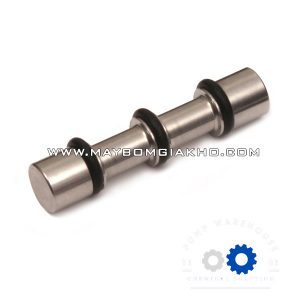

2	095.110.558	Pilot Valve Assembly	1
3	050.036.354	Ball, Check	4
	050.036.357	Ball, Check	4
	050.036.360	Ball, Check	4
	050.036.365	Ball, Check	4
	050.036.600	Ball, Check	4
4	114.024.551	Intermediate Assembly	1
4	114.024.559	Intermediate Assembly	1
5	132.035.360	Bumper, Diaphragm	2
6	135.034.506	Bushing, Plunger	2

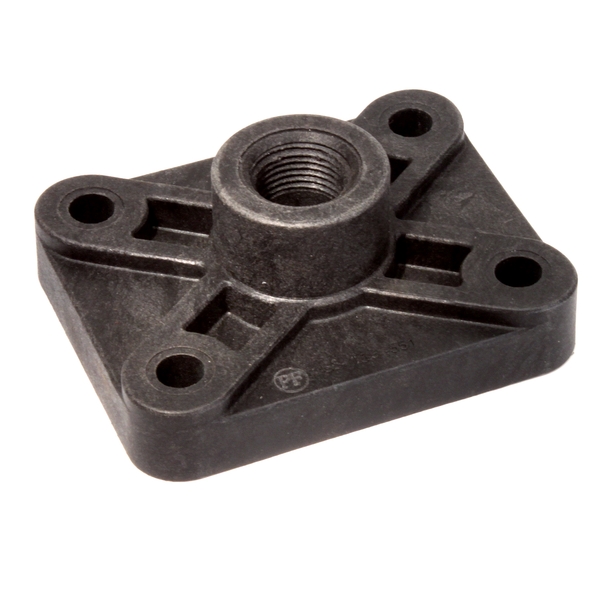

7	165.118.551	Air Inlet Cap Assembly	1
7	165.118.559	Air Inlet Cap Assembly	1
8	170.055.115	Capscrew, Hex HD 1/2-13 x 2.50	32
8	170.055.308	Capscrew, Hex HD 1/2-13 x 2.50	32
9	170.069.115	Capscrew, Hex HD 5/16-18 x 1.75	4
9	170.069.308	Capscrew, Hex HD 5/16-18 x 1.75	4
10	170.092.115	Capscrew, Hex HD 1/2-13 x 4.00	16
10	170.092.308	Capscrew, Hex HD 1/2-13 x 4.00	16
11	171.053.115	Capscrew, Soc HD 3/8-16 x 2.75	4
11	171.053.308	Capscrew, Soc HD 3/8-16 x 2.75	4
12	171.078.115	Capscrew, Flat HD 3/8-16 x1.25	8
13	196.187.520	Chamber, Outer	2
	196.187.552	Chamber, Outer	2
	196.187.557	Chamber, Outer	2
14	196.188.551	Chamber, Inner	2
14	196.188.559	Chamber, Inner	2
15	286.005.354	Diaphragm	2
	286.005.357	Diaphragm	2
	286.005.360	Diaphragm	2
	286.005.363	Diaphragm	2
	286.005.365	Diaphragm	2
	286.114.000	Diaphragm,One-Piece Bonded PTFE	2
16	286.119.600	Diaphragm, Overlay	2
17	312.101.520	Elbow, Discharge	2
	312.101.552	Elbow, Discharge	2
	312.101.557	Elbow, Discharge	2
18	312.115.520	Elbow, Suction	2
	312.115.552	Elbow, Suction	2
	312.115.557	Elbow, Suction	2
19	360.093.360	Gasket, Main Air Valve	1
20	360.103.360	Gasket, Pilot Valve	1
21	360.104.360	Gasket, Air Inlet Cap	1
21	360.104.379	Gasket, Air Inlet Cap (Conductive Models Only)	1
22	360.107.360	Gasket, Inner Chamber	2
23	518.228.520	Manifold	2
	518.228.552	Manifold, 40mm DIN	2
	518.228.557	Manifold	2
24	545.008.110	Nut, Hex 1/2-13	32
24	545.008.308	Nut, Hex 1/2-13	32
25	560.001.360	O-Ring	2
26	612.195.157	Inner, Plate Diaphragm	2
26	612.227.150	Inner Diaphragm Plate (One-Piece Bonded Option)	2

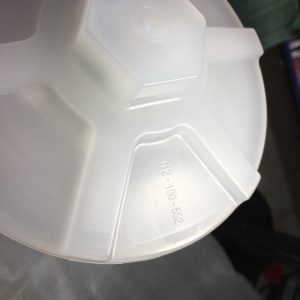

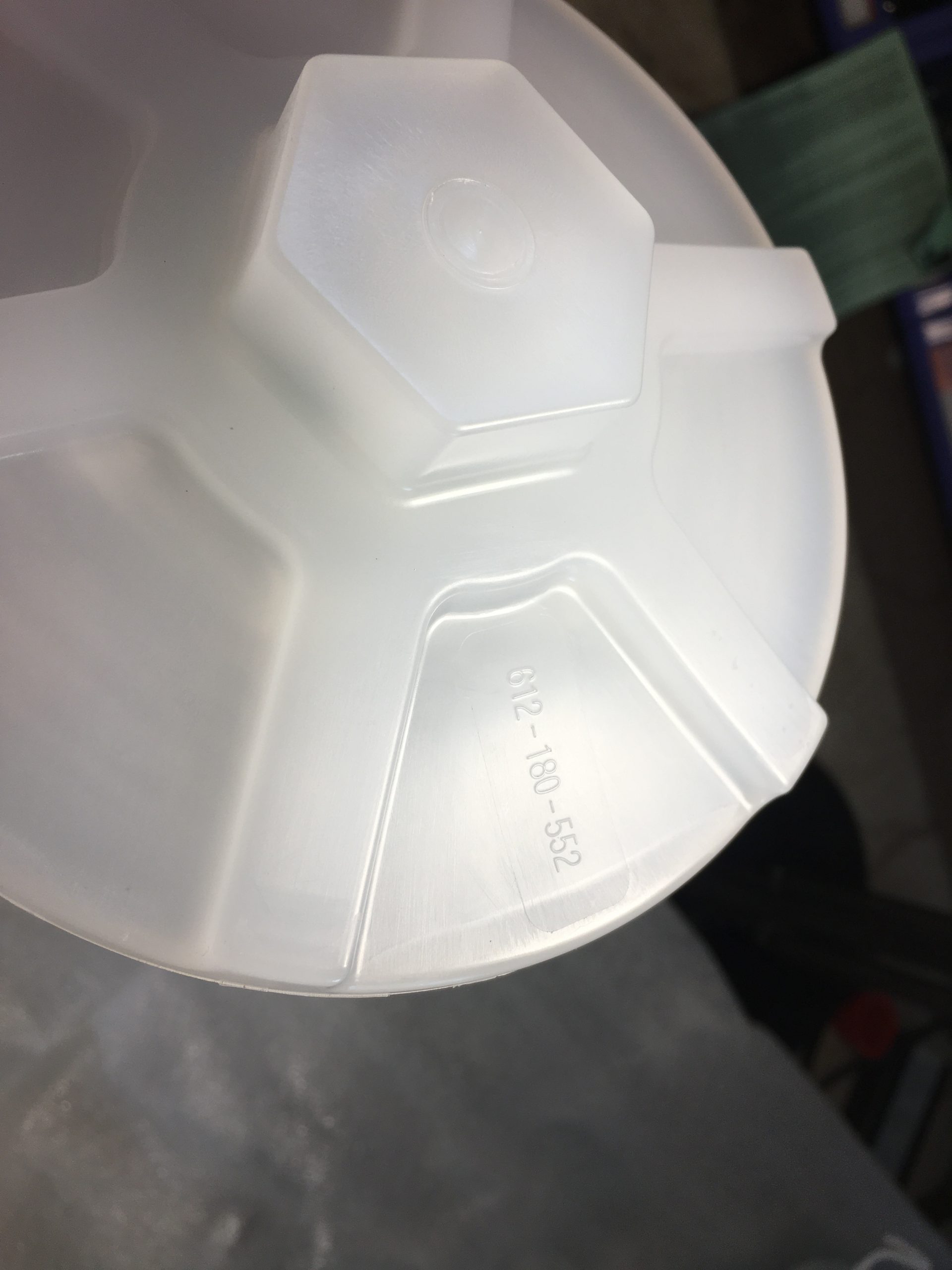

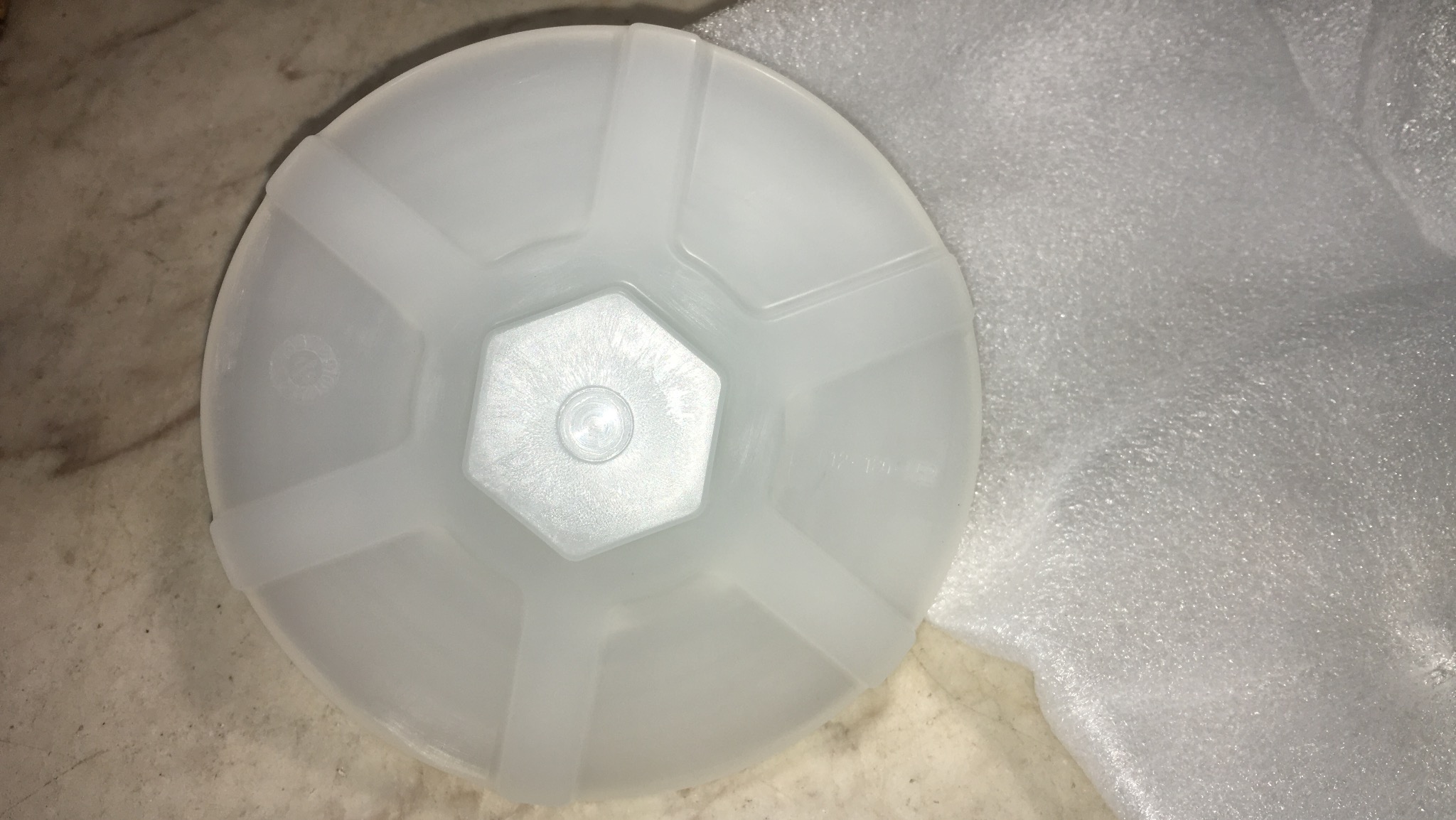

27	612.225.520	Outer, Plate Diaphragm	2
27	612.225.552	Outer, Plate Diaphragm	2
28	620.004.114	Plunger, Actuator	2
29	670.045.520	Retainer, Ball	4
29	670.045.552	Retainer, Ball	4
30	675.042.115	Ring, Retainer	2
31	685.063.120	Rod, Diaphragm	1
32	720.004.360	Seal, U-Cup	2
33	720.035.600	Seal, Check Valve Assembly	8
34	720.037.600	Seal, Manifold	4
35	722.074.520	Seat, Check Valve	4
35	722.074.552	Seat, Check Valve	4
36	901.038.115	Washer, Flat 5/16″	4
36	901.038.308	Washer, Flat 5/16″	4
37	901.046.115	Washer, Flat 1/2″	96
37	901.046.308	Washer, Flat 1/2″	96
38	901.048.115	Washer, Flat 3/8″	4
38	901.048.308	Washer, Flat 3/8″	4
